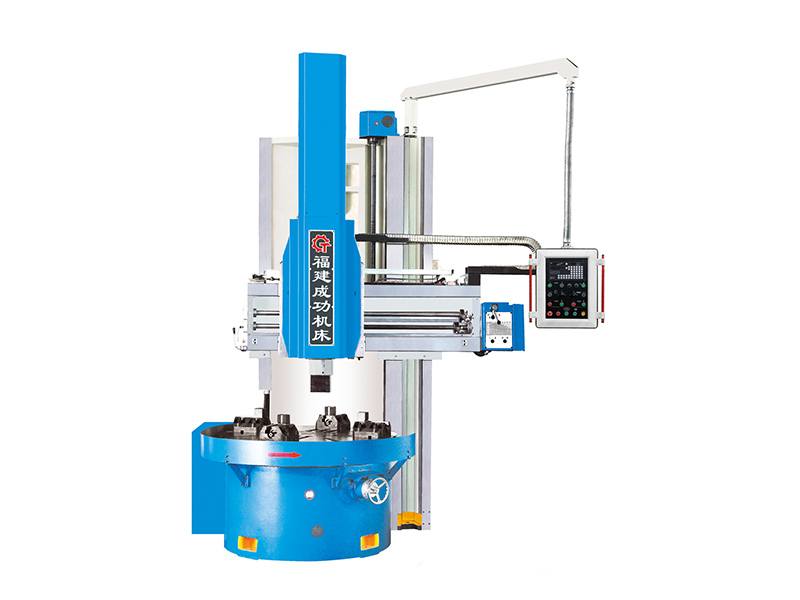

C5116E-2 Single Column Vertical Lathe Series

● This lathe series is suitable for machinery machining in various industries. It is applied in the rough and finish turning of the inside and outside surface of cylinder parts, cone surface, end face, grooving.

● It takes guide rail with dynamic pressure for worktable,double row cylinder roller bearing of model NN30 is applied to the radial direction of spindle,thus the worktable has large loading capacity and high precision rotation.

● There are two different structures of vertical tool holder,one is T-type ram, another is octagon-type ram.

● The vertical tool holder is equipped with a pentagon tool turret and side tool holder is equipped with a square tool turret, it takes hydraulic balance for both tool holders.

● The machine works with PLC control and equipped with digital readout device,which makes it work high reliably.

● The machine has nice shape and easy to operate.

● The side tool holder and taper accessories are provided according to special requirements.

Specification	Unit	C5116E-2
Max turning diameter	mm	1600
Table diameter	mm	1400
Max height of work piece	mm	1500
Max weight of work piece	kg	5000
Speed range of table(16steps)	r/min	5-160
Range of feeds(12steps)	mm	0.8-86
Ran travel of rail head	mm	1000
Horizontal travel of side tool head	mm	630
Vertical travel of side tool head	mm	980
Max turning diameter of side tool head	mm	1400
Travel of cross rail	mm	1250
Rapid traverse of tool head	mm /min	1800
Swivel angle of vertical tool head	±o	30
Max cutting force of rail head	KN	25
Max cutting force of side head	KN	20
Max torque of table	KN.m	25
Height of tool bar section	mm	40
Power of main motor	kw	30
Overall dimensions of machine(L×W×H)	mm	2800×3000×3600
Weight of machine(approx)	kg	14500

The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
