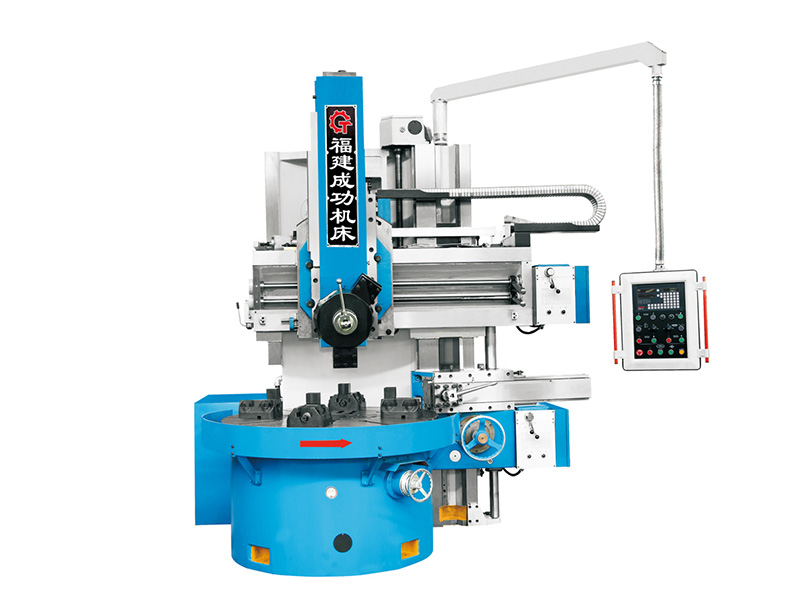

C5116E Single Column Vertical Lathe Series

● This lathe series is suitable for machinery machining in various industries. It is applied in the rough and finish turning of the inside and outside surface of cylinder parts, cone surface, end face, grooving.

● It takes lead rail with dynamic pressure for worktable,double row cylinder roller bearing of model NN30 is applied to the radial direction of spindle,thus the worktable has large loading capacity and high precision rotation.

● The vertical tool holder is equipped with a pentagon tool turret and side tool holder is equipped with a square tool turret, it takes hydraulic balance for both tool holders.

● The machine works with PLC control and equipped with digital readout device,which makes it work high reliably.

● The machine has nice shape and easy to operate.

● The side tool holder and taper accessories are provided according to special requirements.

Specification	Unit	C5112E	C5116E	C5117E
Max turning diameter	mm	1250	1600	1700
Table diameter	mm	1000	1400	1400
Max height of work piece	mm	1000	1000	1000
Max weight of work piece	kg	4000	5000	5000
Speed range of table(16steps)	r/min	6.3-200	5-160	5-160
Range of feeds(12steps)	mm	0.8-86	0.8-86	0.8-86
Ran travel of rail head	mm	650	800	800
Horizontal travel of side tool head	mm	500	630	630
Vertical travel of side tool head	mm	980	980	980
Max turning diameter of side tool head	mm	1000	1400	1400
Travel of cross rail	mm	750	760	760
Rapid traverse of tool head	mm /min	1800	1800	1800
Swivel angle of vertical tool head	±o	30	30	30
Max cutting force of rail head	KN	20	25	25
Max cutting force of side head	KN	20	20	20
Max torque of table	KN.m	17.5	25	25
Height of tool bar section	mm	40	40	40
Power of main motor	KW	AC:22	AC:30	AC:30
Overall dimensions of machine	mm	2360×2300×3580	2800×3000×3870	2830×3000×3870
(L×W×H)
Weight of machine(approx)	Kg	9800	12580	13480

The company keeps improving its products.lt has the right to change the design.specification dimension and structure of the machines without prior notice.
